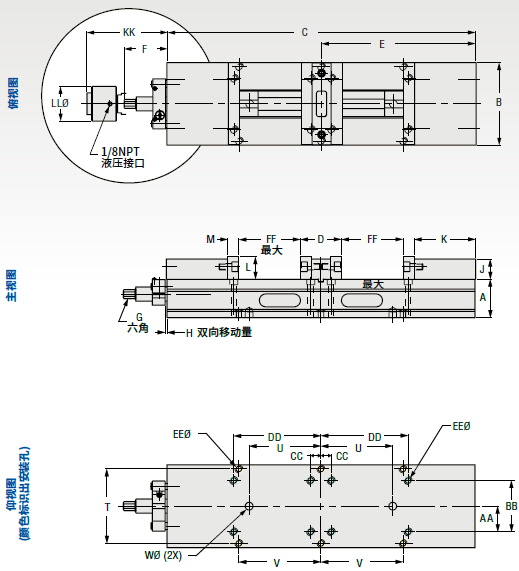

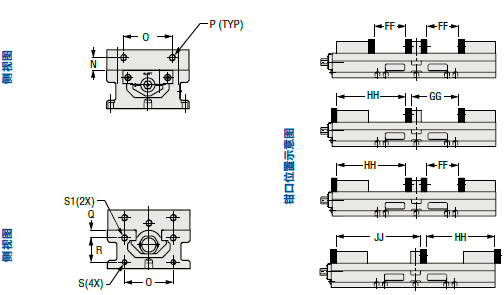

參數(shù)表 mm(in) |
|
DL800 |
DLH800 |
A |
95.25 |
95.25 |
B |
204.72 |
204.72 |
C |
762.00 |
762.00 |
D |
101.60 |
101.60 |
E |
381.00 |
381.00 |
F |
107.95 |
N/A |
G |
(3/4) |
(7/16-INT) |
H |
4.83 |
4.83 |
J |
49.91 |
49.91 |
K |
152.40 |
152.40 |
L |
55.88 |
55.88 |
M |
27.31 |
27.31 |
N |
30.99 |
30.99 |
O |
120.65 |
120.65 |
P |
(5/8-11) |
(5/8-11) |
Q |
19.05 |
19.05 |
R |
60.33 |
60.33 |
S |
(1/2-13) |
(1/2-13) |
S1 |
(5/8-11) |
(5/8-11) |
T |
184.15 |
184.15 |
U |
177.80 |
177.80 |
V |
203.20 |
203.20 |
W |
(0.750) |
(0.750) |
AA |
63.50 |
63.50 |
BB |
127.00 |
127.00 |
CC |
25.40 |
25.40 |
DD |
215.90 |
215.90 |
EE |
(1/2) |
(1/2) |
FF |
152.40 |
152.40 |
GG |
226.70 |
226.70 |
HH |
332.11 |
332.11 |
JJ |
406.40 |
406.40 |
KK |
- |
164.85 |
重量kg |
114 |
164 |
液壓排量CC |
- |
39 |
|
