夾緊力kN |
扭矩Nm |
HDLM4 |
液壓壓 力MPa |
HDHLM4 |
HDLM6 |
液壓壓 力MPa |
HDHLM6 |
14 |
4.6 |
6.9 |
3.4 |
6.8 |
3.4 |
3.9 |
27 |
9.5 |
10.3 |
6.4 |
11.2 |
6.9 |
7.1 |
41 |
14.0 |
13.8 |
8.5 |
14.9 |
10.3 |
10.4 |
54 |
18.0 |
17.2 |
11.3 |
19.2 |
13.8 |
13.9 |
68 |
22.2 |
20.7 |
13.8 |
25.6 |
17.2 |
17.6 |
81 |
26.1 |
24.1 |
16.5 |
30.5 |
20.7 |
21.1 |
95 |
|
27.6 |
18.7 |
33.2 |
24.1 |
24.4 |
|
|
|
31.0 |
21.4 |
27.6 |
28.2 |
|
|
|
|
|
31.0 |
31.6 |
|
液壓排量6.8CC |
|
液壓排量18CC |
|

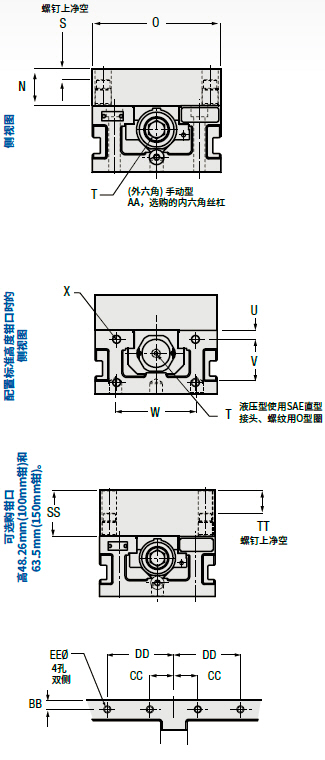

參數表 mm(in) |
100mm和150mm HDL型普通和液壓鉗 |
|
HDLM4 |
HDHLM4 |
HDLM6 |
HDHLM6 |
A |
60.325 |
60.325 |
79.375 |
79.375 |
B |
101.600 |
101.600 |
152.400 |
152.400 |
C |
415.925 |
415.925 |
533.400 |
533.400 |
D |
200.025 |
200.025 |
258.877 |
258.877 |
E |
63.500 |
63.500 |
82.550 |
82.550 |
F |
418.287 |
418.287 |
539.750 |
539.750 |
G |
209.144 |
209.144 |
269.875 |
269.875 |
H |
33.680 |
– |
36.830 |
– |
J |
9.855 |
– |
21.844 |
– |
K |
41.275 |
41.275 |
63.500 |
63.500 |
L |
82.550 |
82.550 |
127.000 |
127.000 |
M |
101.600 |
101.600 |
127.000 |
127.000 |
N |
35.560 |
35.560 |
43.891 |
43.891 |
O |
101.600 |
101.600 |
152.400 |
152.400 |
P |
75.794 |
75.794 |
101.600 |
101.600 |
Q |
65.075 |
65.075 |
84.125 |
84.125 |
R |
20.625 |
20.625 |
24.613 |
24.613 |
S |
7.722 |
7.722 |
13.259 |
13.259 |
T |
14.275 外六角 |
(7/16-20 )UNF O型圈口 |
19.050 外六角 |
(7/16-20) UNF O型圈口 |
U |
9.525 |
9.525 |
11.125 |
11.125 |
V |
42.875 |
42.875 |
53.975 |
53.975 |
W |
63.500 |
63.500 |
98.425 |
98.425 |
X |
M8 x 1.25 |
M8 x 1.25 |
M10 x 1.5 |
M10 x 1.5 |
Y |
– |
3.175 |
– |
3.175 |
Z |
3.048 |
– |
3.962 |
– |
AA |
11.099 內六角 |
11.900 內六角 |
15.875 內六角 |
15.875 內六角 |
BB |
9.525 |
9.525 |
11.125 |
11.125 |
CC |
34.325 |
34.325 |
28.575 |
28.575 |
DD |
65.100 |
65.100 |
79.375 |
79.375 |
EE |
M8 x 1.25 |
M8 x 1.25 |
M8 x 1.25 |
M8 x 1.25 |
FF |
|
|
|
|
GG |
20.000 |
20.000 |
25.000 |
25.000 |
HH |
100.000 |
100.000 |
75.000 |
75.000 |
JJ |
|
|
|
|
KK |
|
|
|
|
LL |
100.000 |
100.000 |
175.000 |
175.000 |
MM |
– |
– |
|
|
NN |
40.000 |
40.000 |
50.000 |
50.000 |
OO |
M8 SHCS |
M8 SHCS |
M12 SHCS |
M12 SHCS |
PP |
– |
– |
– |
– |
QQ |
– |
– |
– |
– |
RR |
16.000 |
16.000 |
16.000 |
16.000 |
SS |
48.260 |
48.260 |
60.960 |
60.960 |
TT |
20.422 |
20.422 |
30.328 |
30.328 |
重量 |
15.42Kgs |
14.96Kgs |
32.21Kgs |
31.75Kgs |
重量?jī)H指鉗體,不含鉗口部分 |
HD和HDL的鉗口及基礎板選項請見第40至43頁 |
|
