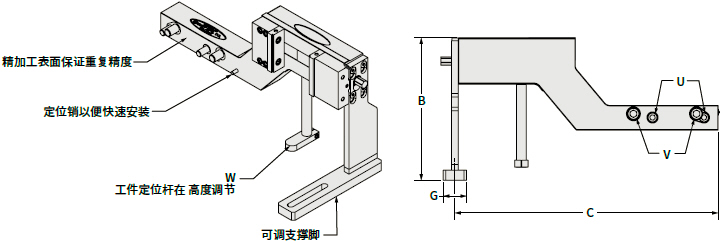

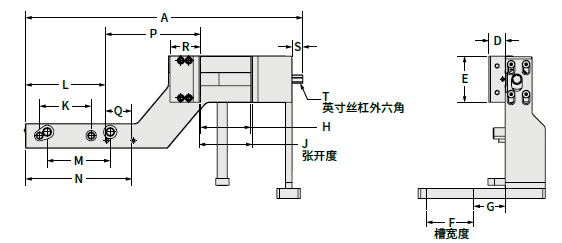

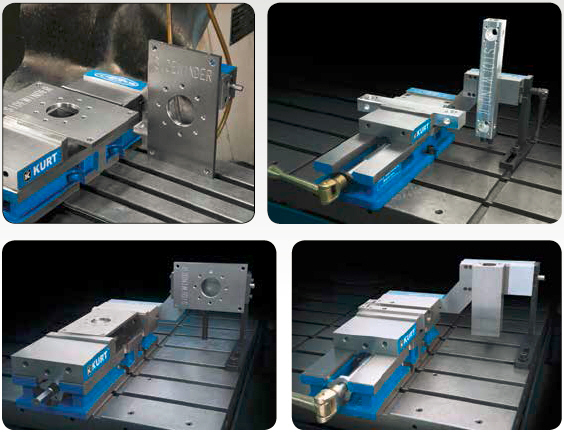

參數(shù)表mm(in) |
|
SDW25II |
SDW35 |
A |
369.82 |
529.84 |
B |
203.2/211.1 |
248.9/271.8 |
C |
349.25 |
503.17 |
D |
26.92 |
31.37 |
E |
63.50 |
88.14 |
F |
76.20 |
90.42 |
G |
13.46 |
60.45 |
H |
0.0/63.5 |
0.0/95.3 |
J |
- |
6.4/101.6 |
K |
98.43 |
98.43 |
L |
152.40 |
152.40 |
M |
- |
120.65 |
N |
- |
203.20 |
P |
81.28 |
182.12 |
Q |
- |
50.80 |
R |
44.45 |
58.42 |
S |
14.22 |
20.32 |
T |
(3/8) |
(9/16) |
U |
(1/2-13) |
(1/2-13) |
V |
- |
(5/8-11) |
W |
127.00 |
146.05 |
重量kg |
9 |
20 |
夾緊力表
SDW25II型鉗 |
扭矩Nm |
夾緊力kN |
5.4 |
2.6 |
8.1 |
3.9 |
10.8 |
5.0 |
13.6 |
6.9 |
16.3 |
10.9 |
SDW35型鉗 |
扭矩Nm |
夾緊力kN |
6.8 |
2.2 |
13.6 |
4.4 |
20.3 |
6.7 |
27.1 |
8.9 |
33.9 |
11.1 |
40.7 |
13.3 |
47.5 |
15.6 |
54.2 |
17.8 |
|
