夾緊力kN |
扭矩Nm |
SCD430 |
SCD640 |
14 |
4.1 |
4.4 |
27 |
7.8 |
7.8 |
41 |
10.7 |
11.5 |
54 |
13.1 |
16.8 |
68 |
15.8 |
19.5 |
81 |
21.8 |
25.6 |

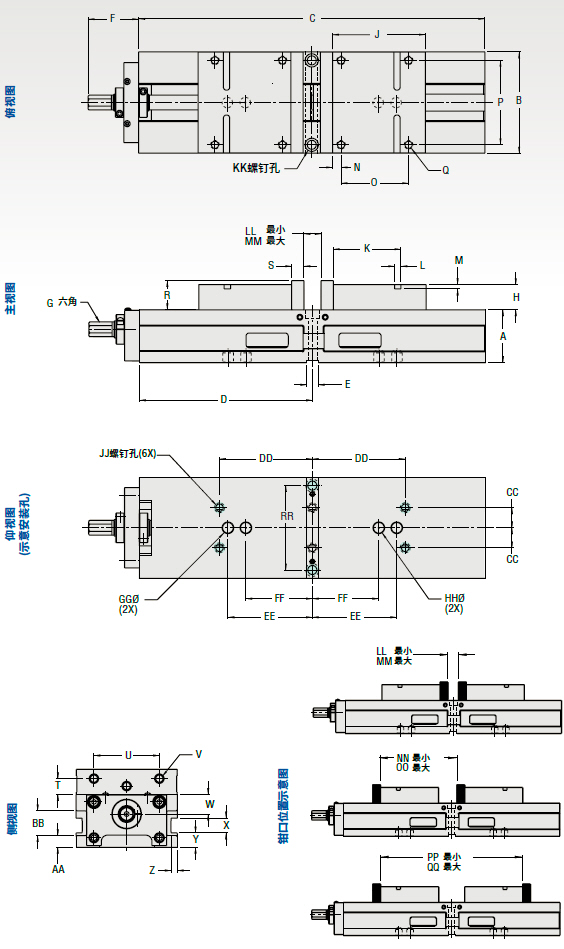

參數(shù)表 mm(in) |
|
SCD430 |
SCD640 |
A |
60.33 |
79.38 |
B |
101.60 |
152.40 |
C |
393.70 |
520.70 |
D |
196.85 |
260.35 |
E |
(0.5005) |
(0.6880) |
F |
60.96 |
76.20 |
G |
(9/16) |
(3/4) |
H |
29.21 |
37.72 |
J |
101.60 |
139.70 |
K |
76.20 |
101.60 |
L |
6.35 |
9.53 |
M |
4.78 |
6.35 |
N |
7.92 |
12.70 |
O |
76.20 |
101.60 |
P |
84.12 |
127.00 |
Q |
(5/16-18) |
(1/2-13) |
R |
31.37 |
44.07 |
S |
13.89 |
18.42 |
T |
17.45 |
23.88 |
U |
63.50 |
98.43 |
V |
(3/8-16) |
(1/2-13) |
W |
22.12 |
29.36 |
X |
17.53 |
22.35 |
Y |
17.78 |
21.59 |
Z |
6.35 |
9.14 |
AA |
13.97 |
17.53 |
BB |
25.40 |
37.34 |
CC |
20.65 |
30.18 |
DD |
95.25 |
139.70 |
EE |
127.00 |
127.00 |
FF |
85.60 |
100.00 |
GG |
(0.625) |
(0.625) |
HH |
(0.630) |
(0.630) |
JJ |
(5/16) |
(3/8) |
KK |
(3/8) |
(1/2) |
LL |
25.40 |
25.40 |
MM |
158.75 |
203.20 |
NN |
140.72 |
183.90 |
OO |
274.07 |
361.70 |
PP |
256.29 |
342.14 |
QQ |
389.64 |
519.94 |
RR |
76.20 |
127.00 |
重量kg |
18 |
45 |
|
