參數(shù)表 mm(in) |
|
標準型 |
反向型 |
液壓型 |
液壓反向省 |
氣動型氣 |
動反向型 |
|
XL6 |
XL6R |
XL6H |
XL6HR |
XL6A |
XL6AR |
A |
79.38 |
79.38 |
79.38 |
79.38 |
79.38 |
79.38 |
B |
152.4 |
152.4 |
152.4 |
152.4 |
152.4 |
152.4 |
C |
568.96 |
568.96 |
568.96 |
568.96 |
568.96 |
568.96 |
D |
5.29 |
5.29 |
5.29 |
5.29 |
5.29 |
5.29 |
E |
17.48 |
17.48 |
17.48 |
17.48 |
17.48 |
17.48 |
F |
37.72 |
37.72 |
37.72 |
37.72 |
37.72 |
37.72 |
G |
114.3 |
114.3 |
114.3 |
114.3 |
114.3 |
114.3 |
H |
44.07 |
44.07 |
44.07 |
44.07 |
44.07 |
44.07 |
J |
18.42 |
18.42 |
18.42 |
18.42 |
18.42 |
18.42 |
K |
101.6 |
101.6 |
101.6 |
101.6 |
101.6 |
101.6 |
L |
525.27 |
525.27 |
525.27 |
525.27 |
525.27 |
525.27 |
M |
23.88 |
23.88 |
23.88 |
23.88 |
23.88 |
23.88 |
N |
98.43 |
98.43 |
98.43 |
98.43 |
98.43 |
98.43 |
O |
(1/2-13) |
(1/2-13) |
(1/2-13) |
(1/2-13) |
(1/2-13) |
(1/2-13) |
P |
139.70 |
139.70 |
139.70 |
139.70 |
139.70 |
139.70 |
Q |
139.70 |
139.70 |
139.70 |
139.70 |
139.70 |
139.70 |
R |
127.00 |
127.00 |
127.00 |
127.00 |
127.00 |
127.00 |
S |
30.18 |
30.18 |
30.18 |
30.18 |
30.18 |
30.18 |
T |
100.00 |
100.00 |
100.00 |
100.00 |
100.00 |
100.00 |
U |
127.00 |
127.00 |
127.00 |
127.00 |
127.00 |
127.00 |
V |
15.88 |
15.88 |
15.88 |
15.88 |
15.88 |
15.88 |
W |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
X |
11.13 |
11.13 |
11.13 |
11.13 |
11.13 |
11.13 |
Y |
38.10 |
38.10 |
38.10 |
38.10 |
38.10 |
38.10 |
Z |
19.05 |
19.05 |
19.05 |
15.88 |
19.05 |
15.88 |

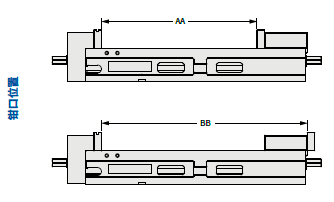

AA |
368.30 |
368.30 |
368.30 |
368.30 |
368.30 |
368.30 |
BB |
488.95 |
488.95 |
488.95 |
488.95 |
488.95 |
488.95 |
CC |
17.53 |
17.53 |
17.53 |
17.53 |
17.53 |
17.53 |
DD |
37.34 |
37.34 |
37.34 |
37.34 |
37.34 |
37.34 |
EE |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
FF |
21.59 |
21.59 |
21.59 |
21.59 |
21.59 |
21.59 |
GG |
20.32 |
20.32 |
20.32 |
20.32 |
20.32 |
20.32 |
HH |
9.14 |
9.14 |
9.14 |
9.14 |
9.14 |
9.14 |
JJ |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
16.00 |
KK |
31.75 |
31.75 |
31.75 |
31.75 |
31.75 |
31.75 |
LL |
- |
- |
63.50 |
63.50 |
- |
- |
MM |
- |
- |
85.85 |
85.85 |
- |
- |
NN |
- |
- |
- |
- |
182.88 |
182.88 |
PP |
- |
- |
- |
- |
25.40 |
25.40 |
QQ |
- |
- |
- |
- |
127.00 |
127.00 |
RR |
- |
- |
- |
- |
88.90 |
88.90 |
SS |
13.49 |
13.49 |
13.49 |
13.49 |
13.49 |
13.49 |
TT |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
101.60 |
重量kg |
45.4 |
45.4 |
47.6 |
47.6 |
48.1 |
48.1 |
液壓排量CC |
- |
- |
11.3 |
11.3 |
- |
- |
|
|
夾緊力kN |
手動扭矩Nm |
標準型 |
XL6 |
XL6R |
13.6 |
3.5 |
3.5 |
27.1 |
8.0 |
8.0 |
40.7 |
11.2 |
11.2 |
54.2 |
15.2 |
15.2 |
67.8 |
18.7 |
18.7 |
81.4 |
22.3 |
22.3 |
94.9 |
28.0 |
28.0 |
108.5 |
30.6 |
30.6 |
夾緊力kN |
液壓MPa |
液壓型 |
XL6H |
XL6HR |
2.8 |
4.0 |
4.0 |
5.5 |
6.8 |
6.8 |
8.3 |
12.2 |
12.2 |
11.0 |
16.2 |
16.2 |
13.8 |
20.5 |
20.5 |
16.6 |
24.5 |
24.5 |
19.3 |
28.6 |
28.6 |
22.1 |
32.7 |
32.7 |
注:夾緊力僅供參考
夾緊力kN |
氣壓Bar |
氣動型 |
XL6A |
XL6AR |
0.7 |
1.4 |
1.4 |
1.4 |
3.7 |
3.7 |
2.1 |
5.7 |
5.7 |
2.8 |
7.9 |
7.9 |
3.5 |
9.8 |
9.8 |
4.1 |
12.1 |
12.1 |
4.8 |
14.4 |
14.4 |
5.5 |
16.9 |
16.9 |
6.2 |
19.5 |
19.5 |
6.9 |
22.2 |
22.2 |
|
