夾緊力kN |
液壓MPa |
液壓型 |
8XLPTLSHS |
8XLPTLSHR |
10 |
24.9 |
24.9 |
12 |
33.3 |
33.3 |
15 |
39.0 |
39.0 |
19 |
50.0 |
50.0 |
21 |
53.6 |
53.6 |
22 |
56.8 |
56.8 |
|
|
|
|
|
|
注:夾緊力僅供參考
|
|
夾緊力kN |
扭矩Nm |
普通型 |
8XLPTLSS |
8XLPTLSR |
27 |
12.9 |
12.9 |
54 |
25.2 |
25.2 |
81 |
35.0 |
35.0 |
109 |
48.1 |
48.1 |
134 |
61.6 |
61.6 |
160 |
74.0 |
74.0 |
190 |
84.5 |
84.5 |
217 |
90.6 |
90.6 |
|
|
注:鍵槽可以特制 請(qǐng)洽我們
|
|
|

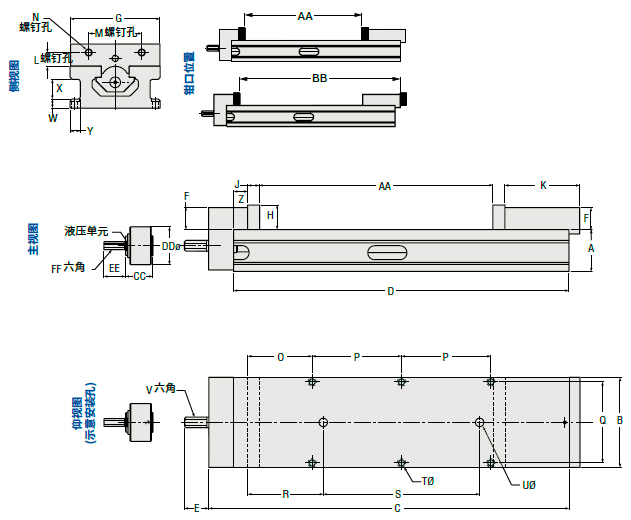

參數(shù)表 mm(in) |
|
普通型 |
液壓型 |
|
8XLPTLSS |
8XLPTLSR |
8XLPTLSHS |
8XLPTLSHR |
A |
95.25 |
95.25 |
95.25 |
95.25 |
B |
204.72 |
204.72 |
204.72 |
204.72 |
C |
819.15 |
819.15 |
819.15 |
819.15 |
D |
762.00 |
762.00 |
762.00 |
762.00 |
E |
55.12 |
48.01 |
54.86 |
- |
F |
49.91 |
49.91 |
49.91 |
49.91 |
G |
203.20 |
203.20 |
203.20 |
203.20 |
H |
55.88 |
55.88 |
55.88 |
55.88 |
J |
27.31 |
27.31 |
27.31 |
27.31 |
K |
169.93 |
169.93 |
169.93 |
169.93 |
L |
30.99 |
30.99 |
30.99 |
30.99 |
M |
120.65 |
120.65 |
120.65 |
120.65 |
N |
(5/8-11) |
(5/8-11) |
(5/8-11) |
(5/8-11) |
O |
146.05 |
146.05 |
146.05 |
146.05 |
P |
203.20 |
203.20 |
203.20 |
203.20 |
Q |
184.15 |
184.15 |
184.15 |
184.15 |
R |
171.45 |
171.45 |
171.45 |
171.45 |
S |
355.60 |
355.60 |
355.60 |
355.60 |
T |
(1/2) |
(1/2) |
(1/2) |
(1/2) |
U |
(0.750) |
(0.750) |
(0.750) |
(0.750) |
V |
(7/8) |
(3/4) |
(7/8) |
- |
W |
20.57 |
20.57 |
20.57 |
20.57 |
X |
44.45 |
44.45 |
44.45 |
44.45 |
Y |
22.86 |
22.86 |
22.86 |
22.86 |
Z |
31.75 |
31.75 |
31.75 |
31.75 |
AA |
533.40 |
533.40 |
533.40 |
533.40 |
BB |
730.63 |
730.63 |
730.63 |
730.63 |
CC |
- |
- |
60.96 |
60.96 |
DD |
- |
- |
85.73 |
85.73 |
EE |
- |
- |
- |
49.28 |
FF |
- |
- |
- |
(5/8) |
重量kg |
105 |
107 |
105 |
107 |
排量CC |
– |
– |
19 |
19 |
|
