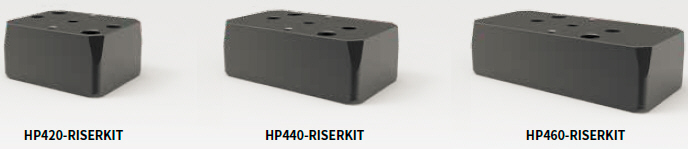

HP420-RISERKIT |
HP440-RISERKIT |
HP460-RISERKIT |

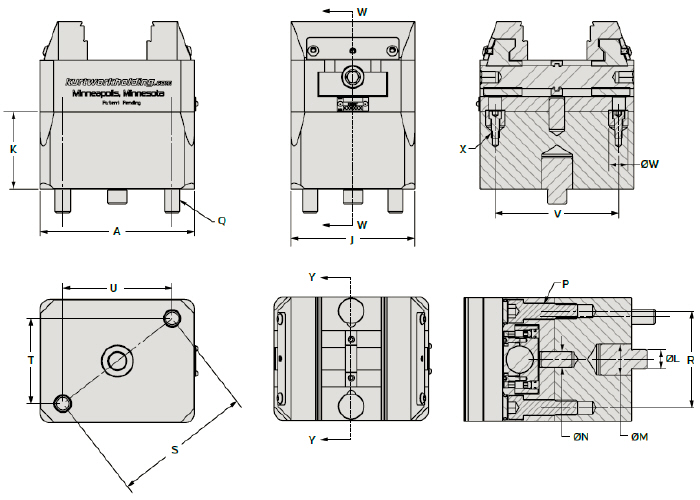

A |
127.0 |
177.8 |
228.6 |
J |
101.6 |
101.6 |
101.6 |
K |
63.5 |
63.5 |
63.5 |
P |
(1/2-13) |
(1/2-13) |
(1/2-13) |
Q |
(1/2-13) |
(1/2-13) |
(1/2-13) |
R |
79.4 |
79.4 |
79.4 |
S |
114.3 |
114.3 |
114.3 |
T |
70.3 |
70.3 |
70.3 |
U |
90.1 |
64.7 |
90.1 |
V |
101.6 |
101.6 |
101.6 |
W |
Ø15.875 |
Ø15.875 |
Ø15.875 |
X |
(1/4-20) |
(1/4-20) |
(1/4-20) |
重量kg |
3 |
4 |
5 |
|
|
備選套裝鉗口 |
型號 |
描述 |
HP420-2S |
帶齒鉗口 |
HP420-2C |
可加工鉗口 |
HP420-2 |
帶燕尾鉗口 |
|
