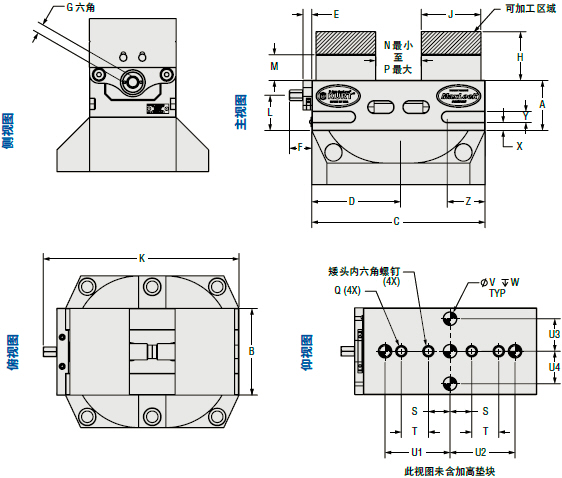

參數(shù)表 mm(in) |
|
SCMX425 SCMX425AL |
SCMX250 SCMX250AL |
A |
50.80 |
58.75 |
B |
63.50 |
101.60 |
C |
127.00 |
203.20 |
D |
63.50 |
101.60 |
E |
10.34 |
10.41 |
F |
23.11 |
26.21 |
G |
(3/8) |
(7/16) |
H |
38.10 |
57.15 |
J |
50.80 |
69.85 |
K |
150.11 |
229.36 |
L |
34.14 |
41.28 |
M |
25.40 |
30.18 |
N |
0.00 |
0.00 |
P |
28.44 |
65.02 |
Q |
10.31Ø(2) |
13.49Ø(4) |
S |
25.40 |
25.40 |
T |
- |
31.75 |
U1 |
- |
76.20 |
U2 |
50.80 |
76.20 |
U3 |
- |
38.10 |
U4 |
- |
38.10 |
V |
9.53 |
15.88 |
W |
12.70 |
17.48 |
X |
- |
9.53 |
Y |
- |
12.70 |
Z |
- |
44.45 |
重量 |
5kg |
14kg |
|
|
SCMX250 |
扭矩Nm |
夾緊力kN |
14 |
1.6 |
27 |
3.3 |
41 |
5.8 |
54 |
8 |
|
|
SCMX425 |
扭矩Nm |
夾緊力kN |
14 |
2.2 |
27 |
4.5 |
41 |
6.7 |
54 |
8.9 |
68 |
11.1 |
81 |
13.4 |
|
|
鉗口(含有兩件) |
貨號 |
長mm |
寬mm |
高mm |
重量kg |
SCMX250AL-JAWKIT 鋁鉗口 |
50.80 |
63.50 |
38.10 |
1 |
SCMX425AL-JAWKIT 鋁鉗口 |
69.85 |
101.60 |
57.15 |
2 |
SCMX250C-JAWKIT 鋁鉗口 |
50.80 |
63.50 |
38.10 |
2 |
SCMX425C-JAWKIT 鋁鉗口 |
69.85 |
101.60 |
57.15 |
5 |
|
