夾緊力kN |
液壓Mpa |
DX6H /DX6HR |
3.4 |
3.5 |
6.9 |
9.0 |
10.3 |
13.2 |
13.8 |
17.8 |
17.2 |
22.4 |
20.7 |
26.8 |
22.1 |
29.5 |
夾緊力kN |
扭矩Nm |
DX150 /DX6R |
14 |
3.5 |
27 |
8.0 |
41 |
11.2 |
54 |
15.2 |
68 |
18.7 |
81 |
22.3 |
95 |
28.0 |
108 |
30.6 |
|

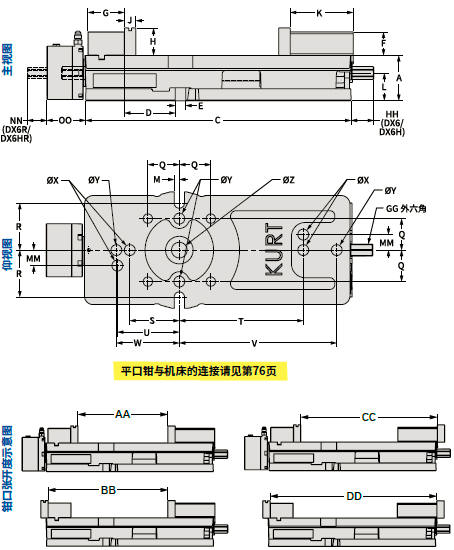

參數(shù)表mm(in) |
|
DX150 /DX6R |
DX6H /DX6HR |
A |
73.03 |
73.03 |
B |
152.40 |
152.40 |
C |
426.97 |
426.97 |
D |
82.14 |
82.14 |
E |
16.66 |
16.66 |
F |
37.72 |
37.72 |
G |
58.72 |
58.72 |
H |
44.07 |
44.07 |
I |
187.73 |
187.73 |
J |
44.45 |
44.45 |
K |
101.60 |
101.60 |
L |
58.29 |
58.29 |
M |
8.33 |
8.33 |
N |
23.88 |
23.88 |
O |
98.43 |
98.43 |
P |
(1/2-13) |
(1/2-13) |
P |
公制M12 |
M12 |
Q |
50.80 |
50.80 |
R |
75.84 |
75.84 |
S |
80.00 |
80.00 |
T |
200.00 |
200.00 |
U |
100.00 |
100.00 |
V |
254.00 |
254.00 |
W |
101.60 |
101.60 |
X |
16.00 |
16.00 |
Y |
15.88 |
15.88 |
Z |
25.20 |
25.20 |
AA |
230.63 |
230.63 |
BB |
307.77 |
– |
CC |
350.65 |
350.65 |
DD |
427.79 |
– |
GG |
(3/4) |
(3/4) |
HH |
36.78 |
36.78 |
MM |
25.00 |
25.00 |
NN |
38.61 |
38.61 |
OO |
- |
63.5 |
重量kg |
29.48 |
29.48 |
|
