夾緊力kN |
扭矩Nm |
3810V |
14 |
2.8 |
27 |
4.4 |
41 |
7.2 |
54 |
9.0 |
68 |
11.7 |
81 |
15.3 |
95 |
18.0 |
108 |
22.7 |
122 |
27.4 |
136 |
29.1 |
|
|
夾緊力kN |
液壓MPa |
3810H |
3.4 |
6.7 |
6.9 |
13.3 |
10.3 |
20.0 |
13.8 |
26.7 |
17.2 |
33.4 |
20.7 |
40.0 |
22.1 |
48.9 |
液壓排量 29.8CC |
|
|
參數(shù)表 mm(in) |
|

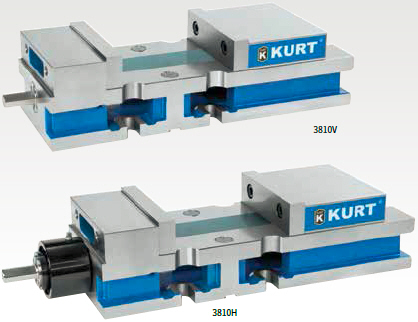

3810V |
3810H |
A |
95.25 |
95.25 |
B |
203.20 |
203.20 |
C |
558.80 |
558.80 |
D |
122.22 |
122.22 |
E |
20.65 |
20.65 |
F |
49.91 |
49.91 |
G |
88.90 |
88.90 |
H |
355.60 |
355.60 |
J |
27.31 |
27.31 |
K |
152.40 |
152.40 |
L |
58.55 |
58.55 |
M |
151.21 |
151.21 |
N |
30.99 |
30.99 |
O |
120.65 |
120.65 |
P |
(5/8-11) |
(5/8-11) |
Q |
300.00 |
300.00 |
R |
12.70 |
12.70 |
S |
101.60 |
101.60 |
T |
16.00 |
16.00 |
U |
23.55 |
23.55 |
V |
50.80 |
50.80 |
W |
(7/8) |
(7/8) |
X |
216.69 |
216.69 |
Y |
100.00 |
100.00 |
Z |
203.20 |
203.20 |

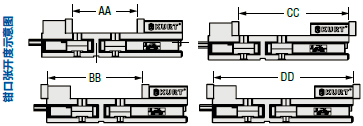

AA |
260.35 |
260.35 |
BB |
376.56 |
376.56 |
CC |
440.06 |
440.06 |
DD |
556.26 |
556.26 |
EE |
- |
75.74 |
FF |
- |
50.80 |
GG |
- |
95.25 |
HH |
55.88 |
55.88 |
MM |
76.20 |
76.20 |
NN |
10.34 |
10.34 |
OO |
15.875 |
15.875 |
PP |
20.07 |
20.07 |
QQ |
15.88 |
15.88 |
RR |
12.70 |
12.70 |
重量 |
67kg |
70kg |
|
