標(biāo)準(zhǔn)型夾緊力kN |
扭矩Nm |
HD690 HDM690 |
14 |
4.3 |
27 |
7.2 |
41 |
10.7 |
54 |
14.5 |
68 |
16.5 |
81 |
19.0 |
95 |
20.9 |
109 |
23.4 |
|
|
液壓型夾緊力kN |
液壓MPa |
HDH690 |
3 |
7.0 |
6 |
14.0 |
8 |
21.0 |
11 |
28.0 |
14 |
35.0 |
17 |
42.0 |
19 |
49.0 |
22 |
56.1 |
液壓排量CC |
19.0 |
注:夾緊力為參考值
|
|

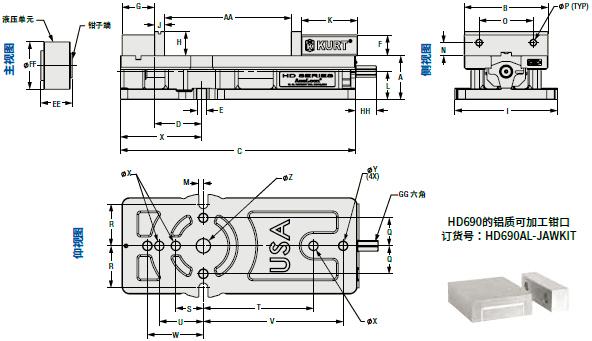

參數(shù)表 mm(in) |
|
HD690 HDM690 HDH690 |
A |
79.38 |
B |
152.40 |
C |
426.97 |
D |
85.73 |
E |
16.76 |
F |
37.72 |
G |
58.73 |
H |
44.07 |
I |
186.39 |
J |
18.42 |
K |
101.60 |
L |
50.80 |
M |
8.38 |
N |
23.88 |
O |
98.43 |
P |
(1/2-13) |
P |
公制M12 |
Q |
50.80 |
R |
75.84 |
S |
50.00 |
T |
200.00 |
U |
80.00 |
V |
254.00 |
W |
101.60 |
X |
16.00 |
Y |
15.88 |
Z |
25.20 |

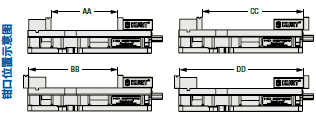

AA |
230.18 |
BB |
307.32 |
CC |
350.19 |
DD |
427.33 |
EE |
57.15 |
FF |
85.73 |
GG |
(3/4) |
HH |
38.18 |
|
